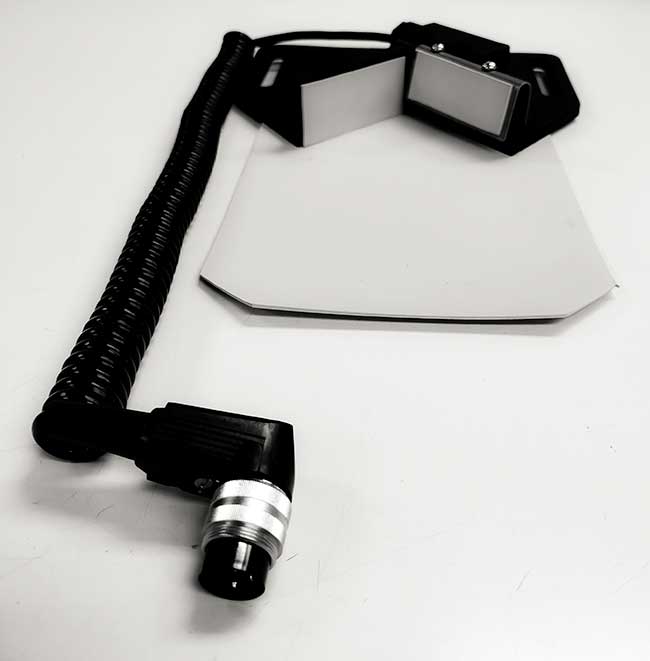

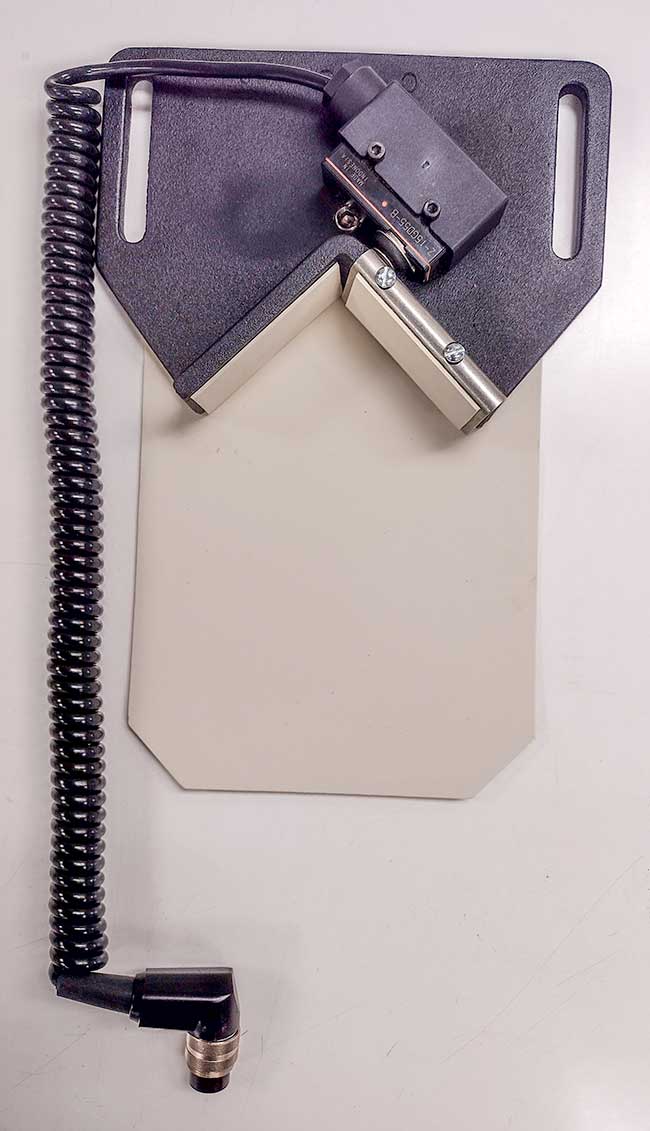

{"id":8344894177472,"title":"C325E Backstop Assembly","handle":"c325e-backstop-assembly","description":"\u003cp\u003e\u003cspan data-olk-copy-source=\"MessageBody\"\u003eThe C325E Backstop Assembly is used on the Model C300 Single Cycle Capper to start the capping cycle. It includes four main parts: a V-shaped backstop casting, a C316E Limit Switch, a C318 Actuator, and a C046A Rubber Mat.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eTo use it, place the container firmly against the “V” part of the backstop. This also pushes down the actuator, which starts the capper.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eOnce the container is in place, the capper moves down, tightens the cap to the set torque, then goes back to its resting position and stops.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eFor safety, the machine will stop if the actuator is released while it’s running. The backstop assembly works with containers from 1 inch to 6 inches wide. A C316AE Limit Switch at the top of the capper’s stroke controls where it stops.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe backstop assembly can be adjusted, but always turn off the power before making any adjustments.\u003c\/span\u003e\u003c\/p\u003e","published_at":"2025-10-01T13:59:58-04:00","created_at":"2025-10-01T13:53:52-04:00","vendor":"Swan-Matic","type":"Manufacturing","tags":[],"price":31200,"price_min":31200,"price_max":31200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":46847588827328,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"C325E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C325E Backstop Assembly","public_title":null,"options":["Default Title"],"price":31200,"weight":1361,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt1_ea89c6d0-297a-4ebf-a6ed-75f1b79f17e0.jpg?v=1759341372","\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt2.jpg?v=1759341372"],"featured_image":"\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt1_ea89c6d0-297a-4ebf-a6ed-75f1b79f17e0.jpg?v=1759341372","options":["Title"],"media":[{"alt":"Capper V-Block Switch","id":36897723875520,"position":1,"preview_image":{"aspect_ratio":0.983,"height":661,"width":650,"src":"\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt1_ea89c6d0-297a-4ebf-a6ed-75f1b79f17e0.jpg?v=1759341372"},"aspect_ratio":0.983,"height":661,"media_type":"image","src":"\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt1_ea89c6d0-297a-4ebf-a6ed-75f1b79f17e0.jpg?v=1759341372","width":650},{"alt":"Capper V-Block Switch 2","id":36897723908288,"position":2,"preview_image":{"aspect_ratio":0.575,"height":1131,"width":650,"src":"\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt2.jpg?v=1759341372"},"aspect_ratio":0.575,"height":1131,"media_type":"image","src":"\/\/www.swanmatic.com\/cdn\/shop\/files\/Capper-V-Block-Switch_opt2.jpg?v=1759341372","width":650}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cspan data-olk-copy-source=\"MessageBody\"\u003eThe C325E Backstop Assembly is used on the Model C300 Single Cycle Capper to start the capping cycle. It includes four main parts: a V-shaped backstop casting, a C316E Limit Switch, a C318 Actuator, and a C046A Rubber Mat.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eTo use it, place the container firmly against the “V” part of the backstop. This also pushes down the actuator, which starts the capper.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eOnce the container is in place, the capper moves down, tightens the cap to the set torque, then goes back to its resting position and stops.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eFor safety, the machine will stop if the actuator is released while it’s running. The backstop assembly works with containers from 1 inch to 6 inches wide. A C316AE Limit Switch at the top of the capper’s stroke controls where it stops.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe backstop assembly can be adjusted, but always turn off the power before making any adjustments.\u003c\/span\u003e\u003c\/p\u003e"}
